ROBOT PROTOTYPE / ISOLATED VERIFIED RUN

A robot snake,
simulated and checked.

Inspect the CAD, replay both seeded MuJoCo scenarios, open the robot descriptions, and audit the fresh-review repairs from an isolated Robot Prototype run.

12 / 12 TESTS · 186 INTERFACE CHECKS · 0 OBSTACLE CONTACTS
01 / OUTPUTOPEN ↓02 / CONVERSATIONREAD ↓

01 /OUTPUT

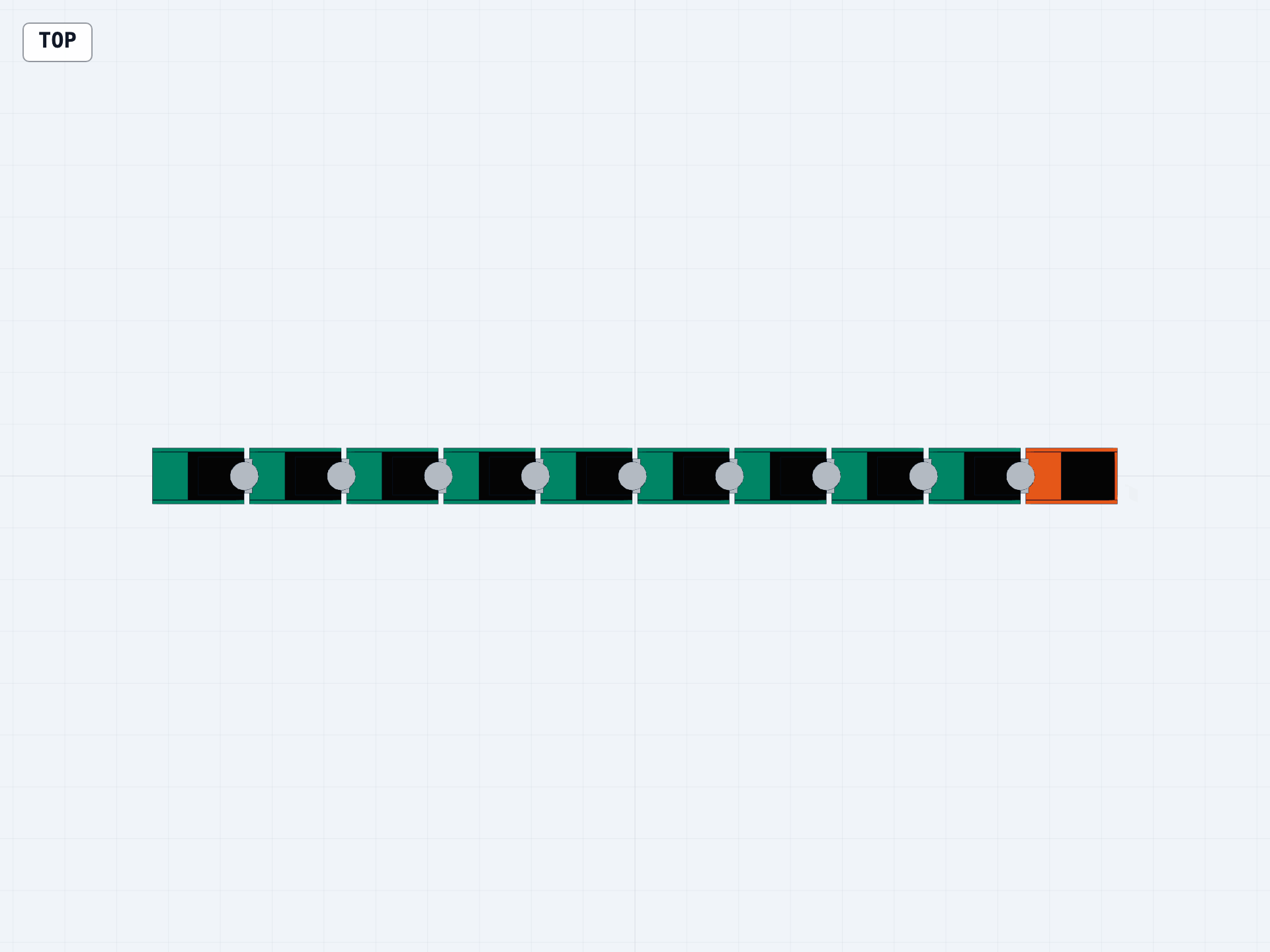

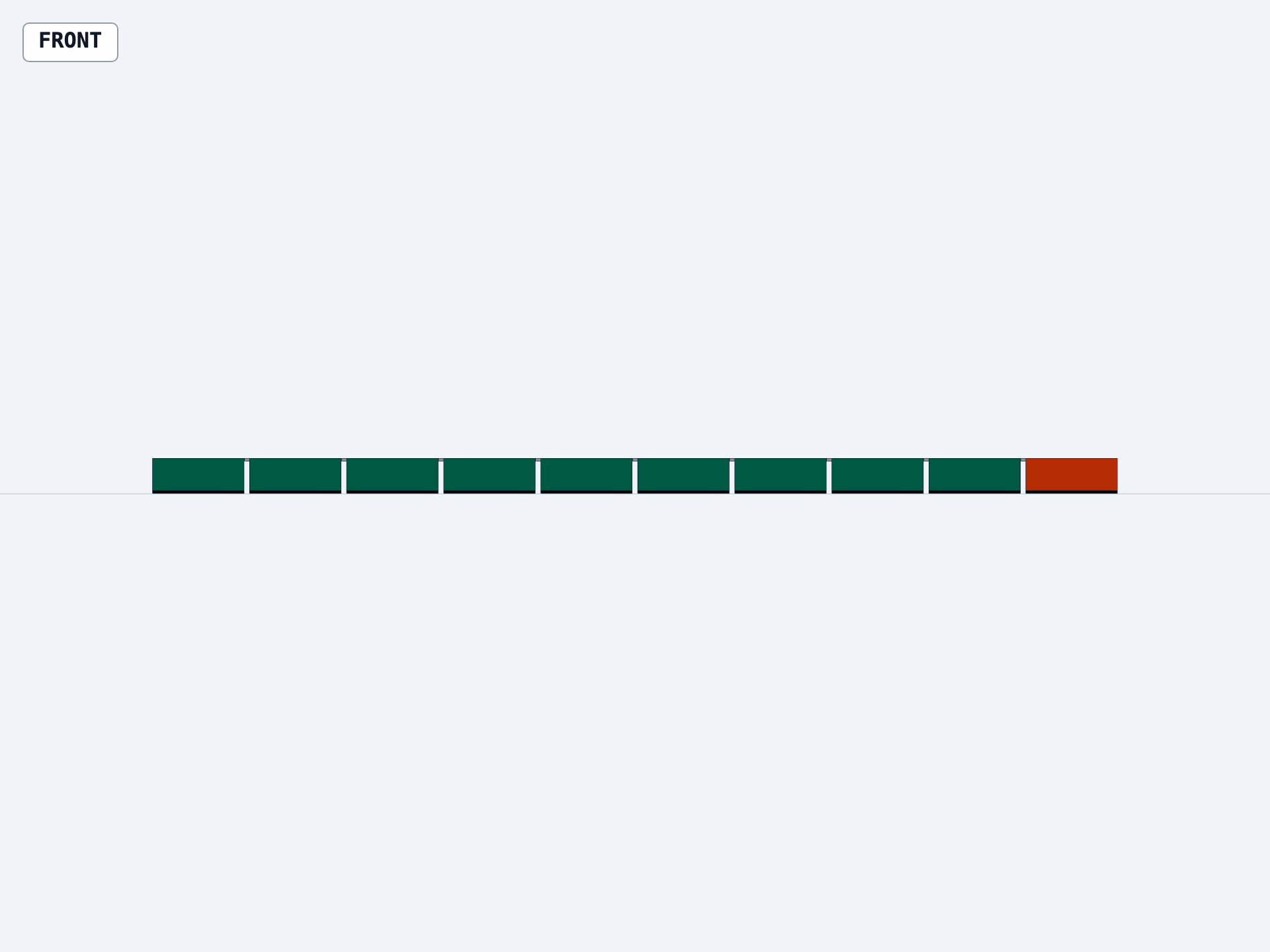

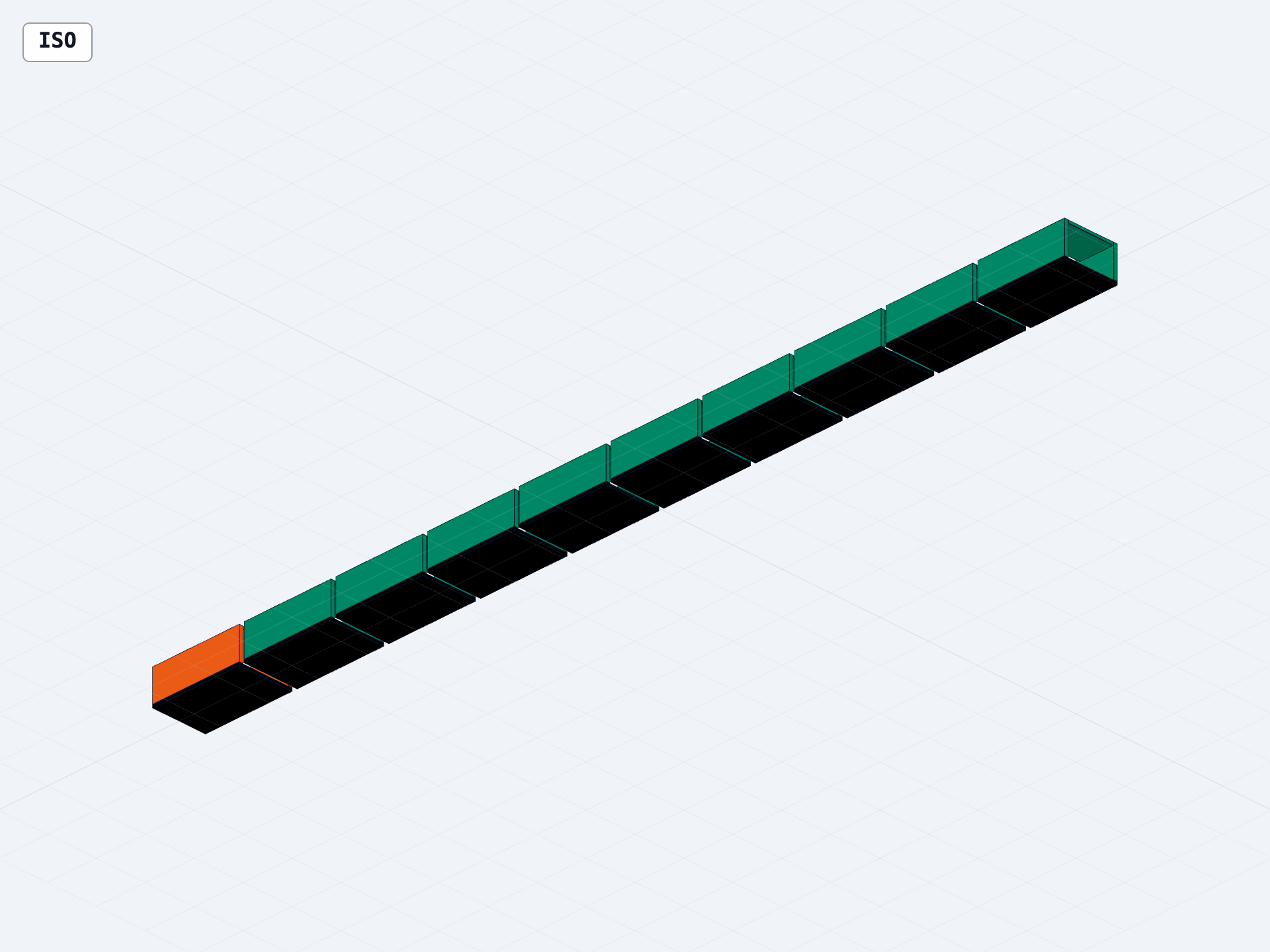

01 / INSPECTABLE CAD10 LINKS · 9 JOINTS · 945 × 55 × 35 MM

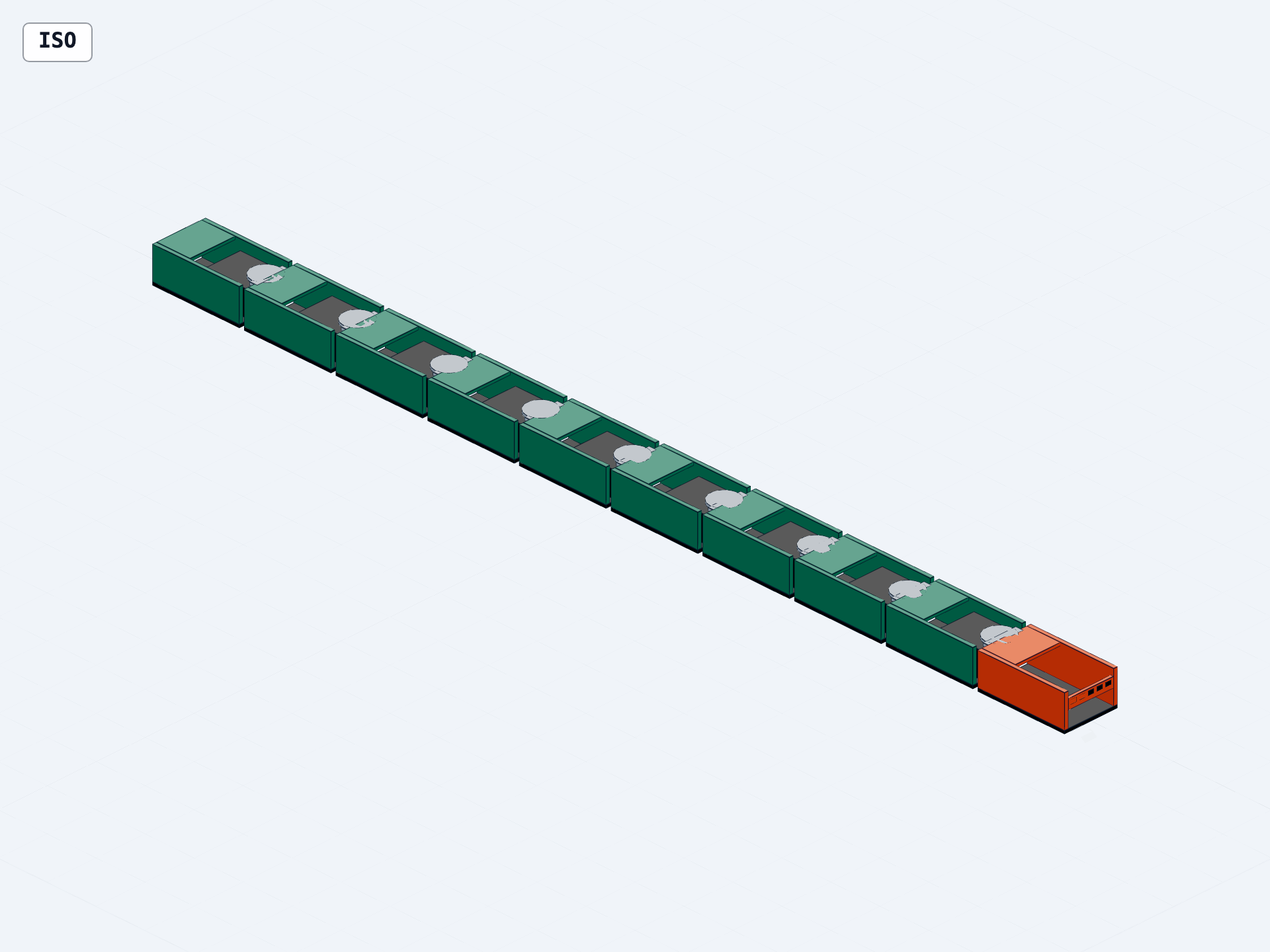

Isometric CAD view of the ten-link robot snake digital prototype

Static CAD view · Interactive preview loads when supported

STATIC CAD / GLB

Interactive static CAD.Rotate the GLB in-browser or download the STEP source geometry. Verified motion appears only in the saved simulation replays below.

STEP ↓GLB ↓
02 / LOCAL ENGINEERING VIEWERRERUN · 3,801 FRAMES · VERIFIED RRD

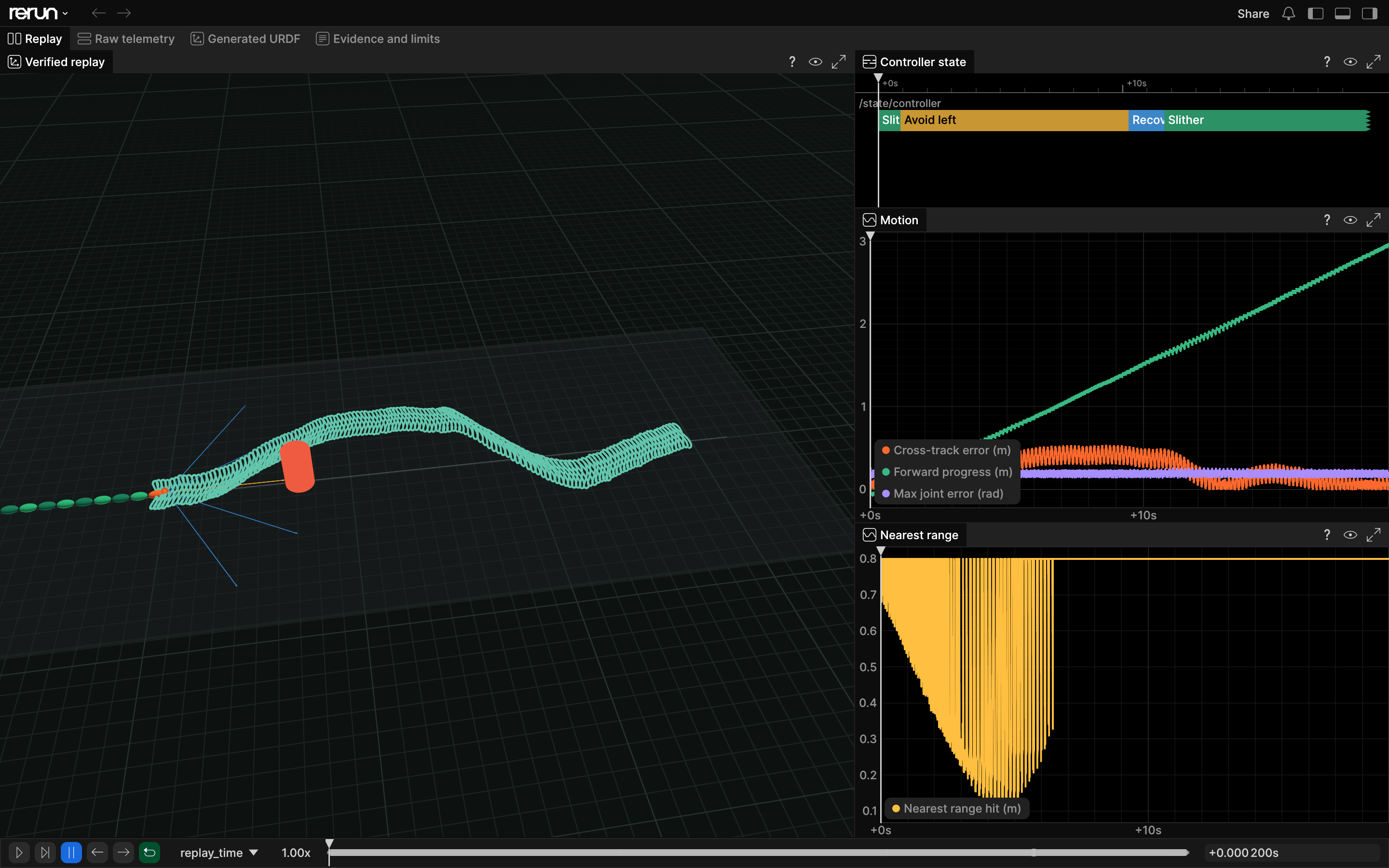

Rerun engineering viewer showing the robot snake, obstacle, sensor rays, controller state, and telemetry plots

PRESERVED TRAJECTORY / NO PHYSICS RERUN

Inspect the whole run
on one timeline.

The recording replays ten link poses, five range rays, the route, controller state, joint commands, tracking error, and range telemetry from the saved MuJoCo evidence.

rerun robot-snake.rrd
03 / SEEDED AUTONOMOUS AVOIDANCESEED 42 · 190 SIM SECONDS

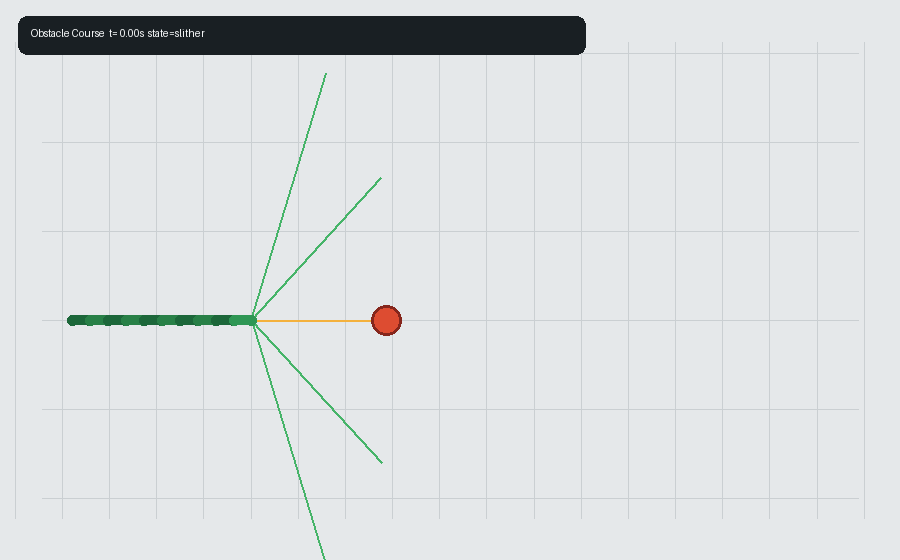

MuJoCo verification replay of the robot snake detecting, clearing, and passing a cylindrical obstacle

Detect. Detour. Rejoin.2.94 m forward · zero contact steps · entire body cleared.

OPEN METRICS ↗
04 / SEEDED LOCOMOTIONSEED 42 · 12 SIM SECONDS

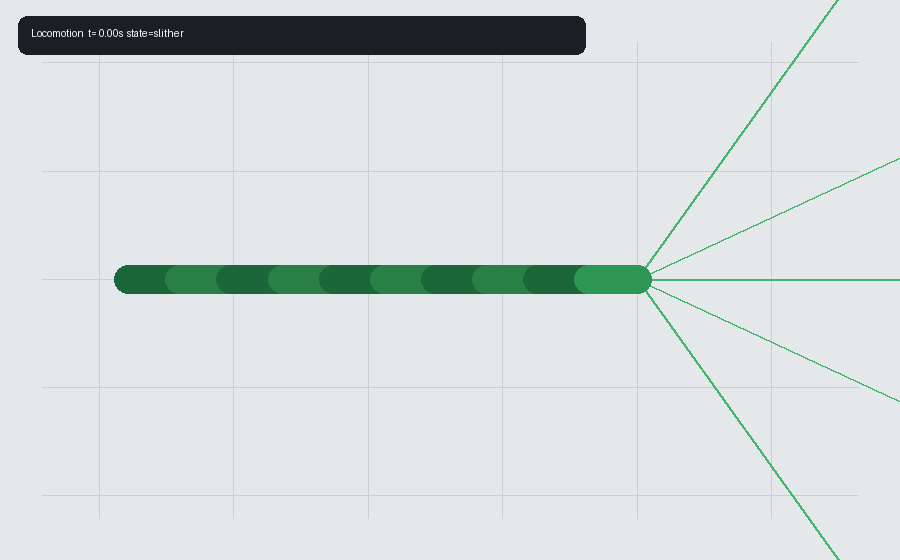

MuJoCo verification replay of the robot snake's traveling lateral wave

Bounded traveling wave.0.15 m forward · commands and joint limits passed.

OPEN METRICS ↗

OBSTACLE CONTACT0physics steps

FORWARD PROGRESS2.94 mobstacle scenario

MAX JOINT SPEED3.38rad/s · limit 4.0

FRESH SUITE12 / 12tests passed

06 / FRESH VERIFICATIONTHREE MATERIAL DEFECTS CAUGHT AND REPAIRED

01 / PRODUCEDCAD, robot descriptions, control, and seeded simulation passed the lead agent’s first suite.

02 / WITHHELDPossible assigned a fresh verification-only workstream before declaring the outcome complete.

03 / FAILEDThe reviewer found an unlatching safe stop, unsafe stop targets, and a hidden velocity-limit overshoot.

04 / REPAIREDStop behavior was latched and frozen; physics-step measurement exposed and removed the overshoot.

05 / PASSEDThe fresh suite passed 12/12 tests after regeneration. The failure history remains in the completion report.

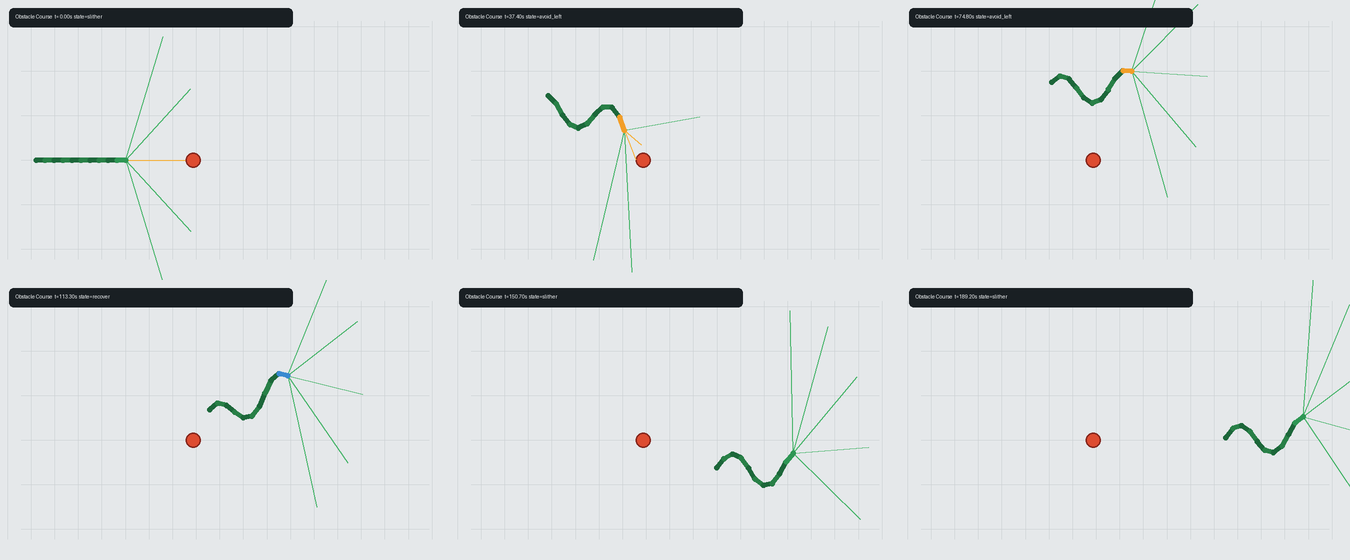

01 / COMPLETION REPORTPasses, repairs, skips, and limitsMD ↗02 / CONTRACTWhat the simulation provesMD ↗03 / BOUNDARYWhat remains unprovenMD ↗04 / MODELGenerated URDFURDF ↗05 / PLANNINGGenerated SRDFSRDF ↗06 / INTAKEPreserved conversationMD ↗07 / REVIEWObstacle contact sheetPNG ↗08 / DATAObstacle trajectoryCSV ↗09 / MANIFESTPublished provenanceJSON ↗

02 / CONVERSATION

One rough idea.
A bounded outcome.

The user did not choose CAD, URDF, MuJoCo, control architecture, safety behavior, or tests. Possible elicited the intended behavior and supplied the missing robotics work.

USER$possible
I want to make a robot snake.

POSSIBLEWhat should it be able to do when it is finished?

USERSlither convincingly and navigate around obstacles on its own.

POSSIBLEWhere should it operate, what are we starting from, and should the first proof be physical or digital?

USERA smooth indoor floor. Starting from scratch, only the idea. I want a convincing digital prototype I can inspect and simulate now, with a clear path toward fabricating later.

POSSIBLEI recommend the Robot Prototype Outcome Pack ↗. It coordinates the STEP assembly, URDF/SRDF, MuJoCo simulation, controls, deterministic tests, sim-to-real gaps, and independent verification. Saying yes authorizes repo-local agent skill installation, the shared outcome brief and state files, and local outcome work. External actions still require separate approval. Proceed with this outcome?

USERYes, proceed.
